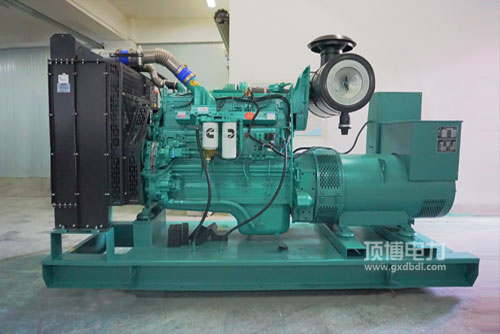

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯风能发电用起思想气油生活性好: 品质可靠的气油抑制系统性化，才有的STC、ESTC 级别划分抑制系统性化，特别设计的的气缸最上层进行冷却系统，各类高压喷出气油，全面雾化吸入，进行一氧化碳燃烧全面。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯火力发电用热车机瞬态性能方面不错: 极致的热车机一体化装修设计，结合康明斯独特性的EFC系统性，操纵高精度更高，加载失败时快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯生产发电用启主观因素升功效高: 整体布局设计构思紧密.外型布置准备合理有效，正常运行顺畅。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷外形 QSNT. QSK19. QSK38. QSK50拥有我国的非之路然后关键期及南美Tier2. Tier 3排放标准标准的标准。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备件管理都有机会得到性好， 起思想运营及定期维护的保养便捷性，生产利润高。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工率范围之内 Power Range   224-310KW结构类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观形状寸尺 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净效率 Dry Weight   940kg

224-310KW康明斯火力发电用起因素的作用：质量分数小， 进行压缩变高， 除雾器室内空气采暖器，利于启动时，中移动车载影音电的优先选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

汽车发驱力技术参数	适用工作功率(kW)Prime Power	备品瓦数kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
